Description:

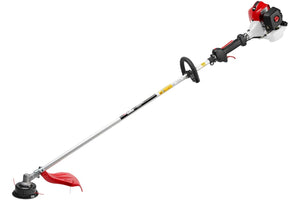

This RedMax trimmer is a powerful performer for homeowners as well as commercial contractors. The TRZ230S features a 22.5 cc, 0.94 horsepower engine and its light weight makes the trimmer extra portable for landscaping use. A Strato-Charged engine ensures up to 20% better fuel economy than a traditional two-stroke engine while increasing torque and improving emissions. A steel drive shaft with 7-point splined engagement ensures durability and quick acceleration.

Specifications:

Engine:

• Model: TRZ230S
• Cylinder Displacement: 1.37 cubic inches
• Clutch Engagement Speed: 4,000 rpm (±120)
• Electrode Gap: 0.03 inches
• Fuel Consumption: 450 g/kWh
• Fuel Tank Volume: 21.64 fluid ounces
• Idling Speed: 3,000 rpm
• Maximum RPM (Output Shaft): 8,208 rpm
• Power Output: 0.94 hp
• Spark Plug: NGK BPMR8Y
• Maximum Torque: 1 Nm
• Maximum Torque at RPM: 6,500 rpm

Product Data:

• Drive Gear Angle: 60°
• Gear Ratio: 1.462

Emissions:

• Exhaust Emissions (CO Average): CARB 495.18 g/kWh

Dimensions:

• Weight (Excluding Cutting Equipment): 10.14 lbs
