Description:

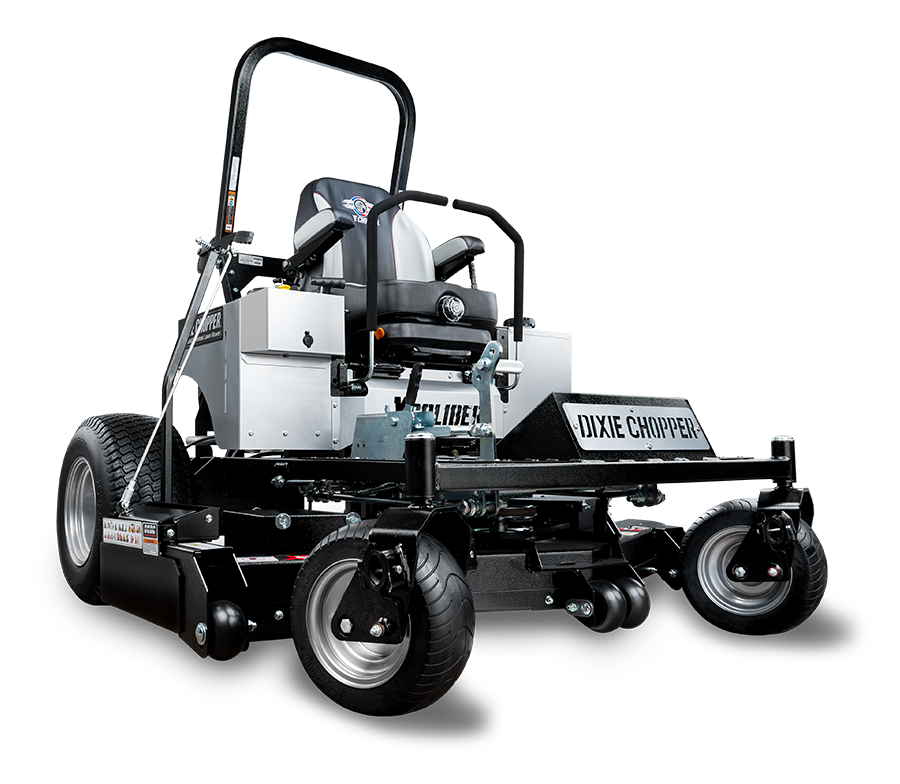

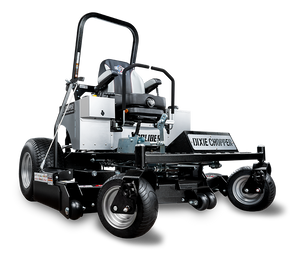

Professional commercial contractors and large property home owners have come to depend on the XCaliber for its legendary performance. Our flagship mower features:

Features:

 Pure Power – Models powered with Kawasaki® FX or Vanguard® Big Block EFI engines up to 40 horsepower.

X2 Wind Tunnel Deck – The industry's best cutting deck available in 66" and 74" cutting widths for maximum productivity, "Wind Tunnel" front edge for increased discharge performance, and industry leading 2-inch blade overlap for precision cutting.

Ultimate Comfort – Springer Forks come standard along with a high-back seat with padded armrests, recline, and lumbar.

Productivity – Our heavy-duty pump and wheel motor drivetrain increases ground speed up to 13 mph to mow over 7 acres per hour.

Wide Wheelbase – An extra wide wheelbase assists in hillside performance and overall ride quality.

Most Lifetime Warranties – Worry-free lifetime warranties on the frame, front forks, steering levers, and front caster bearings.

Specifications:

Engine

• Manufacturer: Vanguard® EFI
• Horsepower: 40 hp
• Displacement: 993 cc
• Air-cleaner: 4 stage & Turbinator® Pre-Cleaner
• Cooling: Air-cooled
• Starter: Electric
• Warranty: 3-Year

Drive System

• Pumps: Hydro-Gear® 21cc
• Wheel motors: Parker® DG335
• Ground speed: 13 mph
• Parking brake: Automotive Style
• Towing capacity: 2,000 lbs

Mower Deck

• Deck size: 74 in
• Acres/hour*: 7.8
• Cutting height: 1.25 – 5 in
• Discharge chute: OCDC (standard)
• Deck height adjustment: Manual lift, 1/4 in increments
• Electric lift: Optional
• Deck engagement: Ogura® 250 ft-lbs
• Construction: 7 ga formed & welded
• Top plate: 7 ga bolted
• Blades: 3 × 26 in × 2.5 in
• Blade tip speed: ~18,000 fpm
• Spindle housings: Peer® Turf Xtreme™ ductile iron (sealed)
• Spindles: 1.25 in machined shaft
• Anti-scalp rollers: 6
• Spindle cooling fans: Standard (3)
• Pulleys: Vented split 3/16 in steel deep groove

Other Features

• Battery: 12 Volt, 350 cca
• Digital display: Tachometer, hour meter, voltmeter, service alerts
• Fuel capacity: 12 gallons
• Rear tires: 25 × 12-12 GrassMaster
• Front tires: 15 × 6-8 (run-flat)
• Frame: Welded 1 × 2 in tube, 7 ga formed
• Floor-pan: Removable, steel
• Seat: High-back, full suspension, lumbar, recline, padded armrests
• Springer Forks: Standard

Dimensions

• Overall height: 53 in
• Overall height (rollbar up): 77.5 in
• Overall width: 76 in
• Overall length: 86 in
• Overall length (rollbar down): 89.5 in
• Weight: 1,482 lbs
