Description:

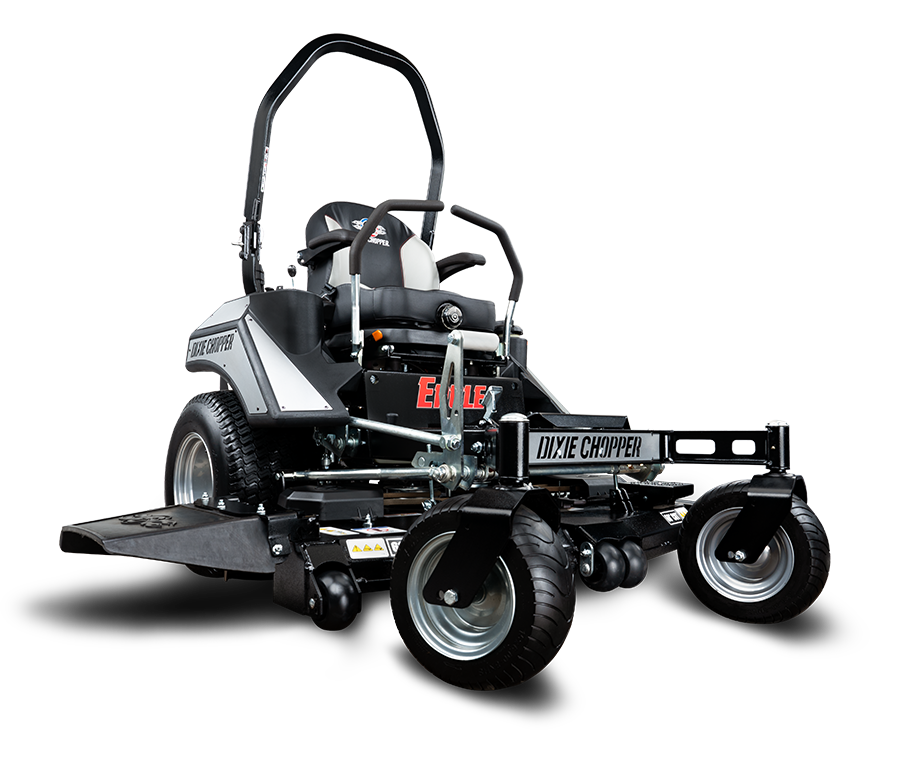

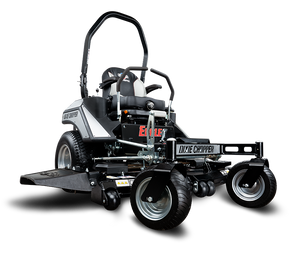

The Eagle is loaded with commercial features and delivers more speed, power, and performance to maintain your home's property, commercial accounts, and everything in between.

Features:

Proven Power – Equipped with the industry preferred 27 horsepower Kawasaki® FX engine for trusted reliability and performance.

Robust Deck – Offered in two cutting widths (54"and 60"), the Eagle's deck features a deep 7 gauge shell and abrasion resistance baffles to outlast the competition in extreme conditions.

Smooth AND Fast – The Parker® HTG series transmissions deliver a smooth drive up to 12 miles per hour in a reliable and efficient drivetrain.

Enhanced Comfort – Full suspension seat with a padded design and isolated platform provides ultimate comfort.

 Large Drive Tires – 25" rear tires for more speed, stability, and operator comfort.

Run-Flat Tires – Flat front tires are a problem of the past with run-fl at tires standard on the Eagle.

Specifications:

Engine

• Manufacturer: Kawasaki® FX
• Horsepower: 27 hp
• Displacement: 852 cc
• Air Cleaner: 4-stage with Turbinator® Pre-Cleaner
• Cooling: Air-cooled
• Starter: Electric
• Engine Warranty: 3 years

Drive System

• Transmission: Dual hydrostatic Parker® HTG (14cc)
• Ground Speed: 12 mph
• Parking Brake: Integrated in transaxle
• Towing Capacity: 1,000 lbs

Mower Deck

• Deck Size: 60 in.
• Acres per Hour: 5.8
• Cutting Height: 1 – 5 in.
• OCDC (Discharge Chute): Optional, foot-operated
• Height Adjustments: Manual lift, ¼ in. increments
• Electric Lift: Optional
• Deck Engagement: Warner® 250 ft-lbs
• Construction: 7-ga formed & welded, abrasion-resistant baffles
• Blades: (3) – 2.5 in. x 20.5 in.
• Blade Tip Speed: ~18,500 fpm
• Spindles: 1.25 in. machined shaft
• Spindle Housings: Peer® Turf Xtreme™ ductile iron (sealed)
• Anti-Scalp Rollers: 4
• Pulleys: 7-ga vented split steel, deep groove

General

• Battery: 12 Volt, 350 cca
• Digital Display: Tachometer, hour meter, fuel gauge
• Fuel Capacity: 8 gallons
• Rear Tires: 25 x 12-12 GrassMaster
• Front Tires: 15 x 6-8 (run-flat)
• Frame: Welded C-channel, 7-ga formed
• Floor Pan: Removable, steel
• Seat: Full suspension, adjustable w/ armrests & isolated platform
• Springer Forks: Optional

Dimensions

• Height (rollbar down): 52.7 in.
• Height (rollbar up): 77.7 in.
• Width (chute down): 76.9 in.
• Width (chute up): 66.1 in.
• Length (rollbar down): 88.5 in.
• Length (rollbar up): 84.6 in.
• Weight: 1,322 lbs
