Description:

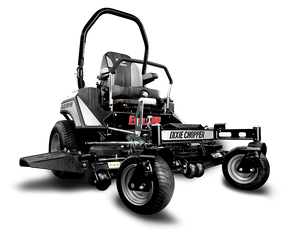

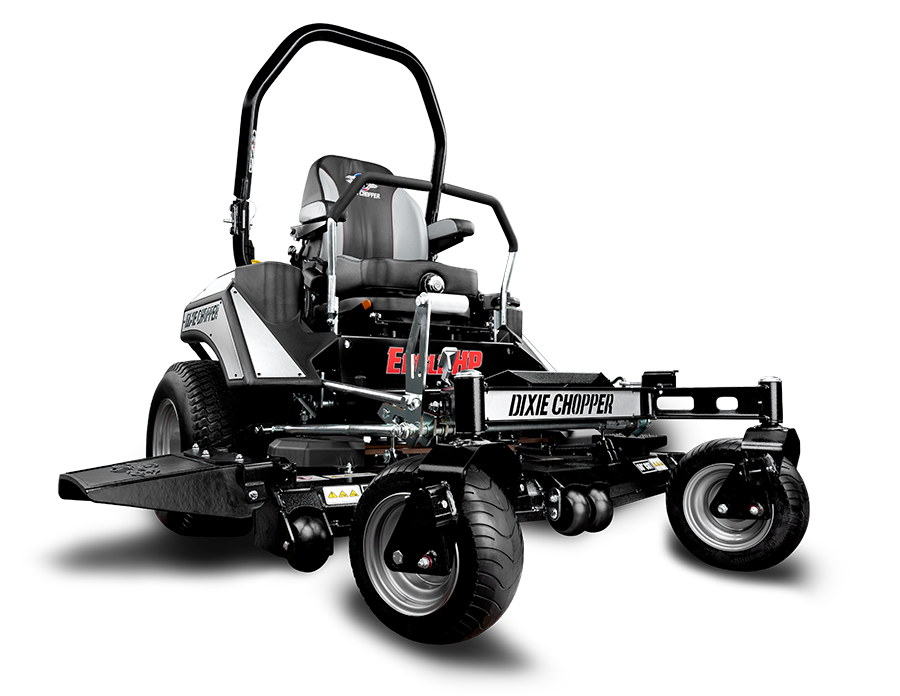

The new Eagle HP provides the ultimate mowing experience with unmatched combination of speed, power, performance, and comfort.

Features:

 Fast Ground Speed – Hydro-Gear® ZT-5400 gives operators speeds up to 14mph for faster ground transportation and increased productivity.

 Pure Power – Equipped with the industry preferred Kawasaki® FX engine or a 40hp Vanguard® Big Block EFI for more power and fuel savings.

Ultimate Comfort – Springer Forks come standard along with a high-back seat with padded armrests, recline, lumbar, and isolated platform.

Robust Deck – Offered in two cutting widths (60"and 72"), the Eagle HP deck features a deep 7 gauge shell and abrasion resistance baffles to outlast the competition in extreme conditions.

Wide Stance – Extra-wide frame offers enhanced operator comfort and improved stability when mowing hillsides.

Run-Flat Tires – Flat tires are a problem of the past with run-fl at tires standard on the Eagle HP.

Specifications:

Engine

• Manufacturer: Kawasaki® FX
• Horsepower: 35 hp
• Displacement: 999 cc
• Air Cleaner: 4-stage with Turbinator® Pre-Cleaner
• Cooling: Air-cooled
• Starter: Electric
• Engine Warranty: 3 years

Drive System

• Transmission: Dual hydrostatic Hydro-Gear® ZT-5400
• Ground Speed: 14 mph
• Parking Brake: Integrated in transaxle
• Towing Capacity: 300 lbs (low-speed only)

Mower Deck

• Deck Size: 60 in.
• Acres per Hour: 6.7
• Cutting Height: 1 – 5 in.
• OCDC (Discharge Chute): Optional, foot-operated
• Height Adjustments: Manual lift, ¼ in. increments
• Electric Lift: Optional
• Deck Engagement: Warner® 250 ft-lbs
• Construction: 7-ga formed & welded, abrasion-resistant baffles
• Blades: (3) – 2.5 in. x 20.5 in.
• Blade Tip Speed: ~18,500 fpm
• Spindles: 1.25 in. machined shaft
• Spindle Housings: Peer® Turf Xtreme™ ductile iron (sealed)
• Anti-Scalp Rollers: 4
• Pulleys: Vented split 3/8 in. steel deep groove

General

• Battery: 12 Volt, 350 cca
• Digital Display: Hour meter, fuel gauge
• Fuel Capacity: 10 gallons
• Rear Tires: 25 x 12-12 GrassMaster
• Front Tires: 15 x 6-8 (run-flat)
• Frame: Welded C-channel, 7-ga formed
• Floor Pan: Removable, steel
• Seat: High-back, full suspension, lumbar, recline, padded armrests & isolated platform
• Springer Forks: Standard

Dimensions

• Height (rollbar down): 55.25 in.
• Height (rollbar up): 78.5 in.
• Width (chute down): 77 in.
• Width (chute up): 67 in.
• Length (rollbar down): 88.6 in.
• Length (rollbar up): 88.5 in.
• Weight: 1,478 lbs
