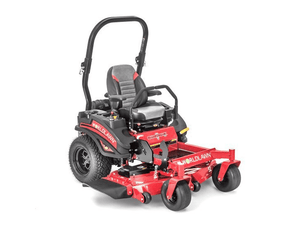

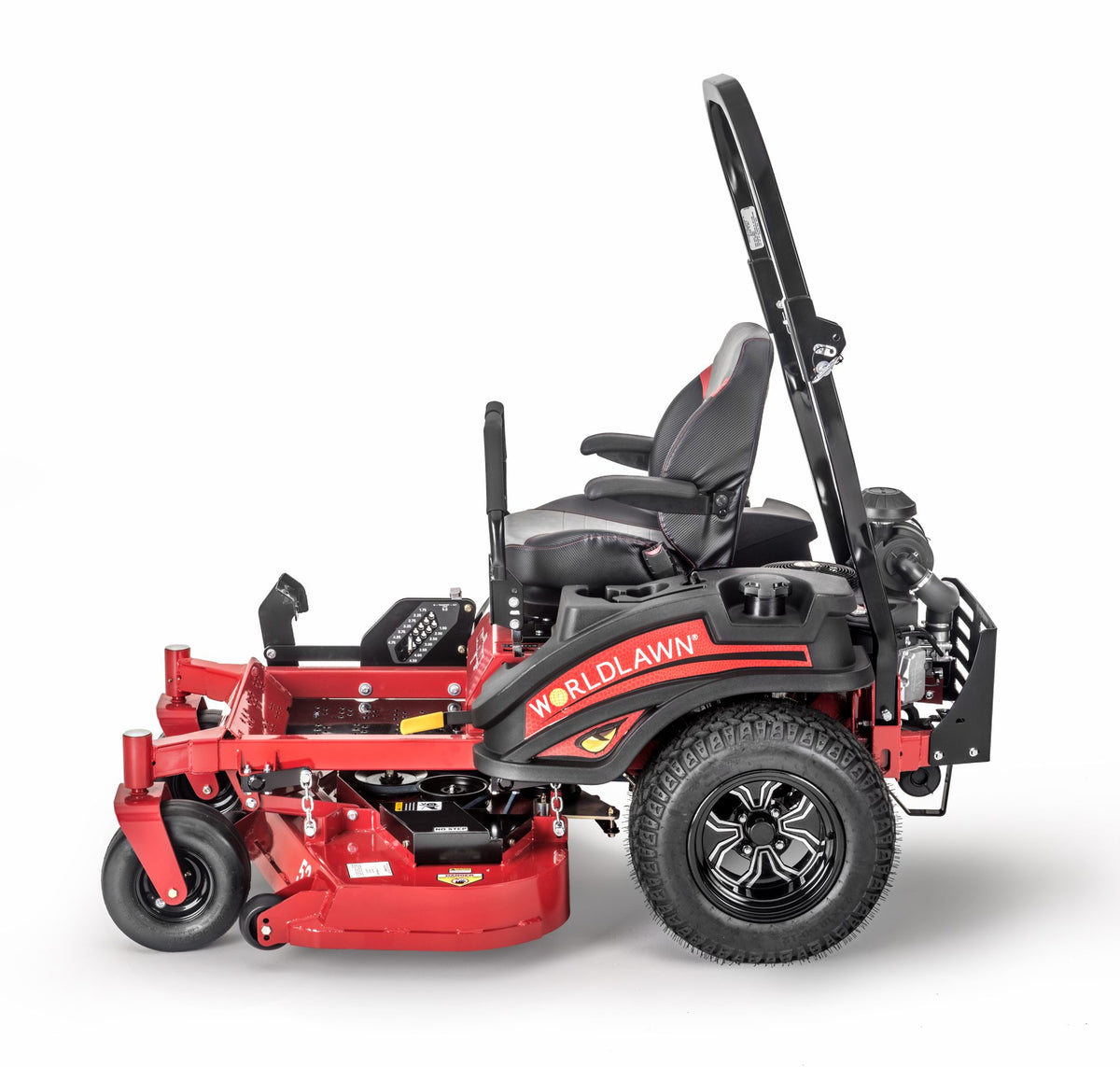

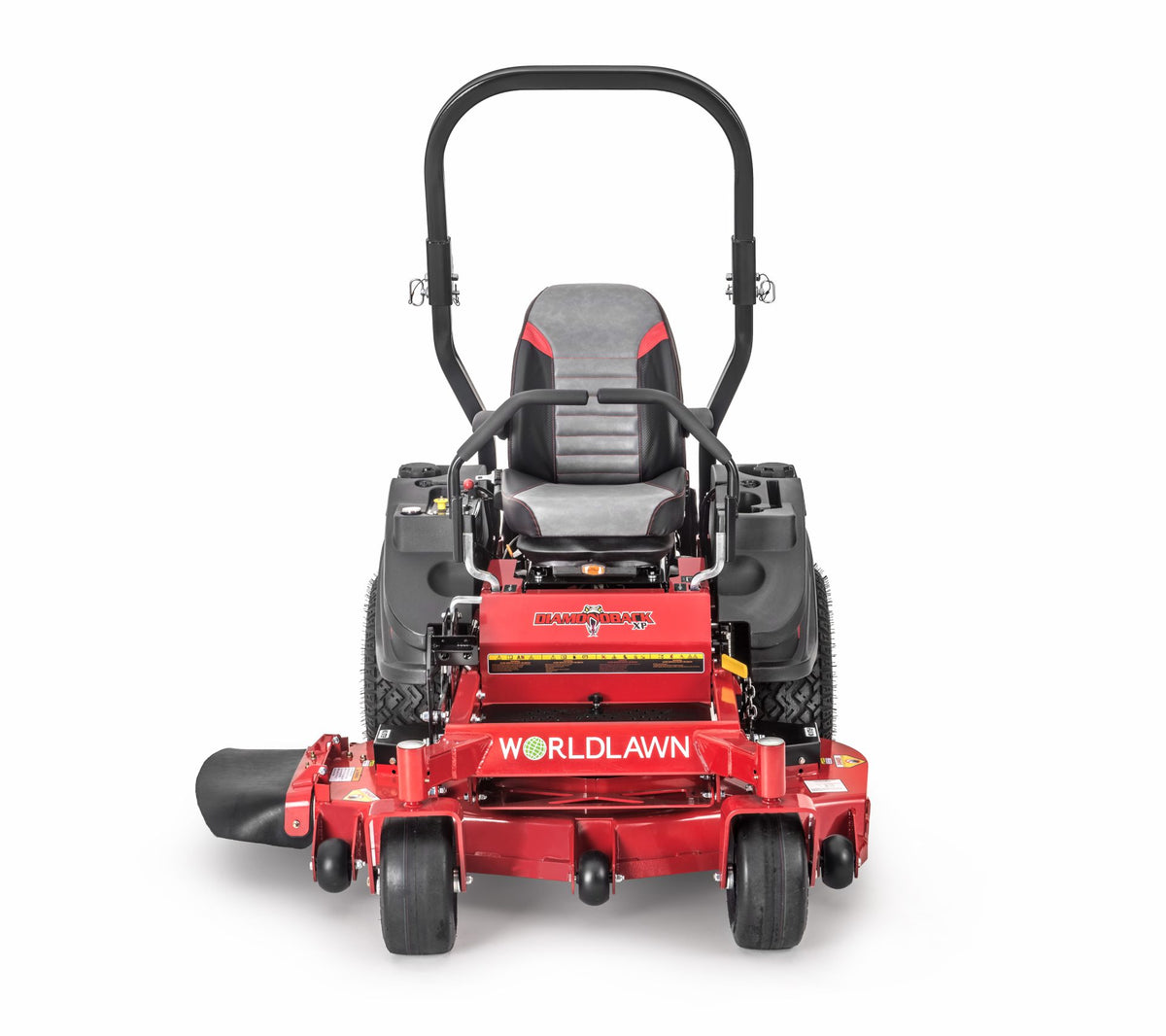

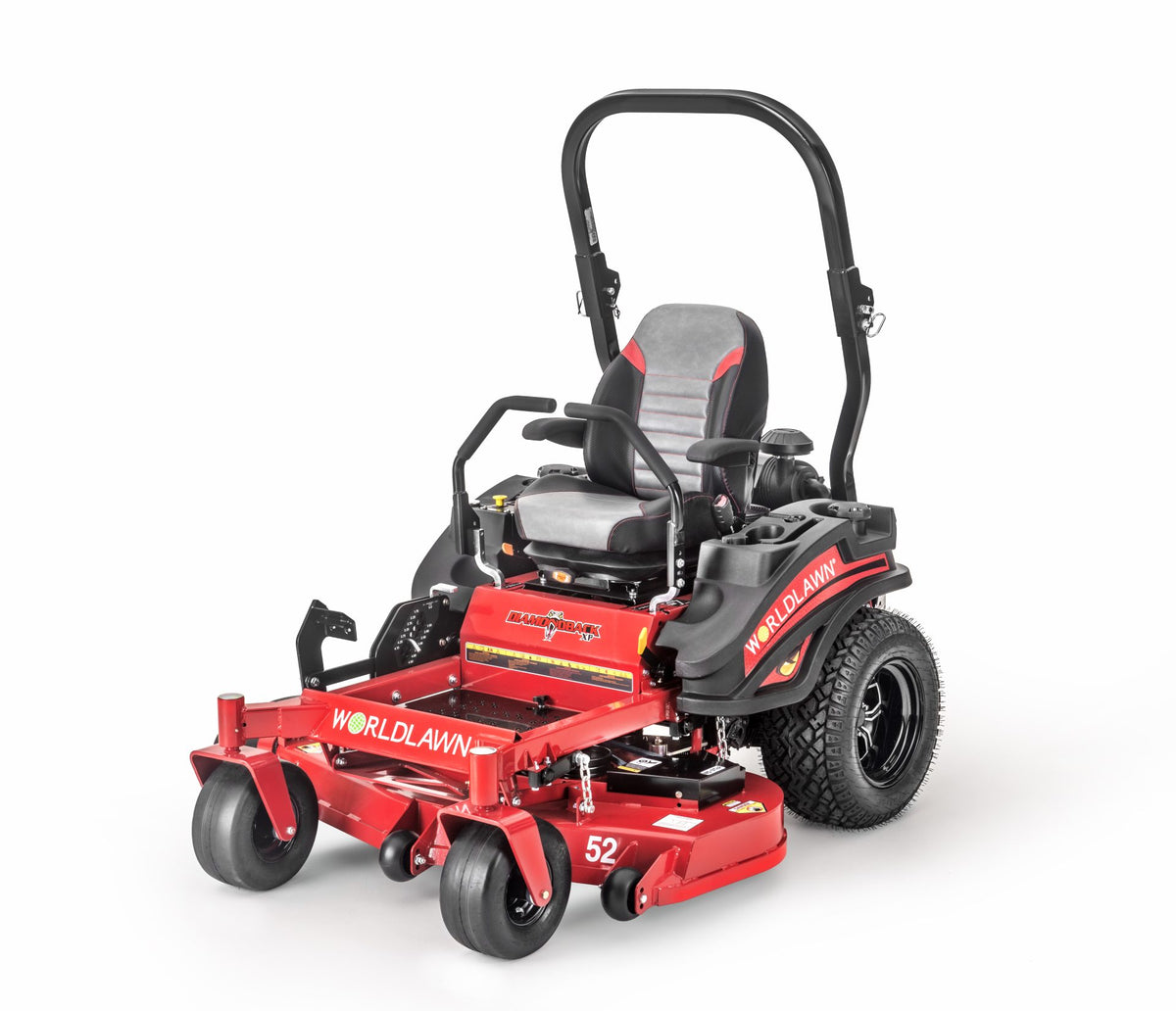

Why the Diamondback XP 60" Is the Heavy‑Duty Commercial Machine Built for All‑Day Performance

Kawasaki FX730V Commercial Engine — 24 HP The Diamondback XP 60 is powered by the Kawasaki FX730V, a 24 HP commercial‑grade V‑Twin engineered for extreme durability. The FX series features upgraded air filtration, stronger internal components, and higher torque output compared to FR residential engines — making it ideal for daily commercial mowing.

Hydro‑Gear ZT‑3400 Commercial Transmissions Dual Hydro‑Gear ZT‑3400 transaxles deliver maximum torque, smoother control, and long service life. This is a major upgrade over ZT‑3200 units and is commonly found in upper‑tier commercial zero turns.

Heavy‑Duty 8‑Gauge Fabricated Deck — 60" The XP deck is built from 8‑gauge welded steel, reinforced for strength and designed for high‑volume airflow. This deck produces a clean, professional cut and withstands commercial abuse.

Triple‑Blade Cutting System Three 20" blades deliver a clean, even cut across the full 60" width, improving cut quality and reducing scalping.

Electric PTO Clutch Instant blade engagement with a commercial‑grade electric PTO system.

Wide Cutting Height Range Cutting heights from 1.5" to 4.75", adjustable for residential or commercial turf.

Large Fuel Capacity — 9.5 Gallons A massive 9.5‑gallon fuel tank keeps you mowing longer without refueling, ideal for commercial routes.

Commercial Tires for Traction & Stability

• Front Tires: 13 × 6.50‑6 smooth

• Rear Tires: 23 × 10.50‑12 turf These provide excellent traction, hillside stability, and smooth operation.

Full Commercial Frame & Spindle Support Triple‑layer spindle support and reinforced frame components ensure long‑term durability.

ROPS Included Foldable ROPS bar for operator safety.

Fast Ground Speed Up to 9 mph forward speed for high productivity.

Dimensions & Weight

• Length: 77.4"

• Width (Deflector Down): 73"

• Width (Deflector Up): 61"

• Wheelbase: 50.5"

• Track Width: 49.5"

• Weight: 1020 lbs

Warranty Coverage Backed by Worldlawn’s 3‑Year Residential & Commercial Warranty, plus a 10‑Year Deck Shell Warranty.
