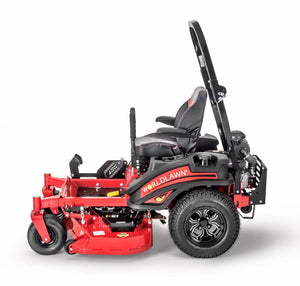

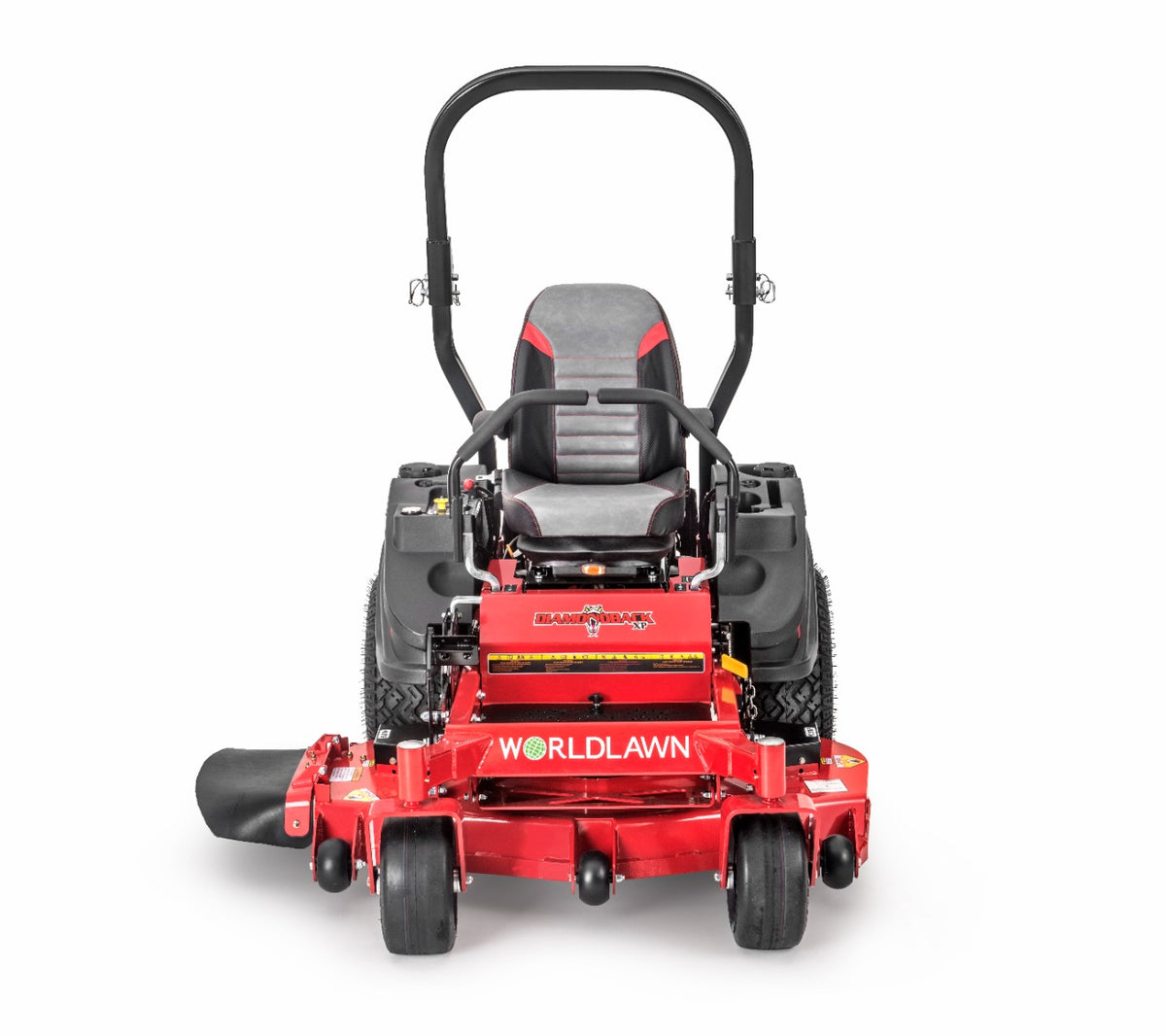

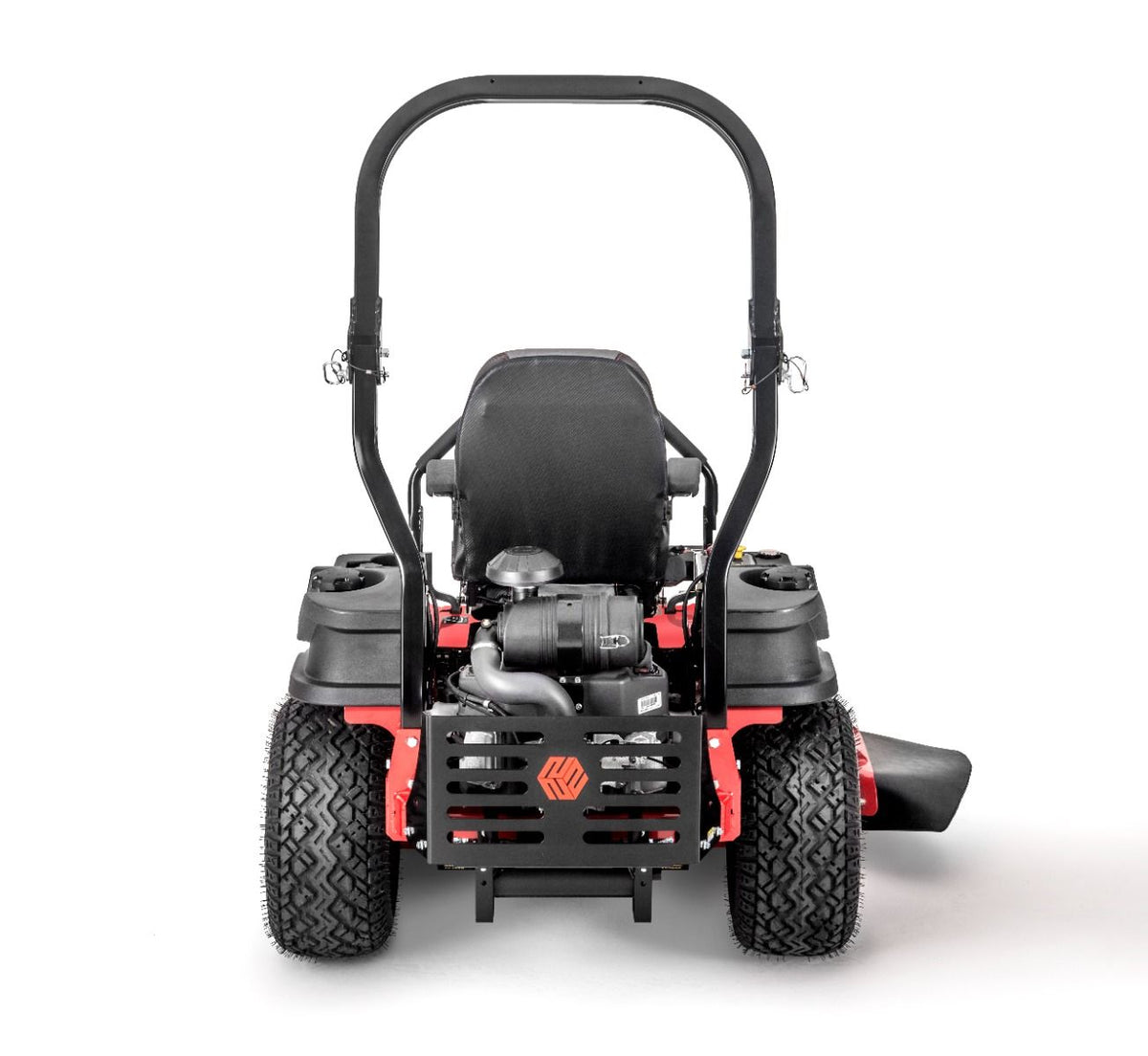

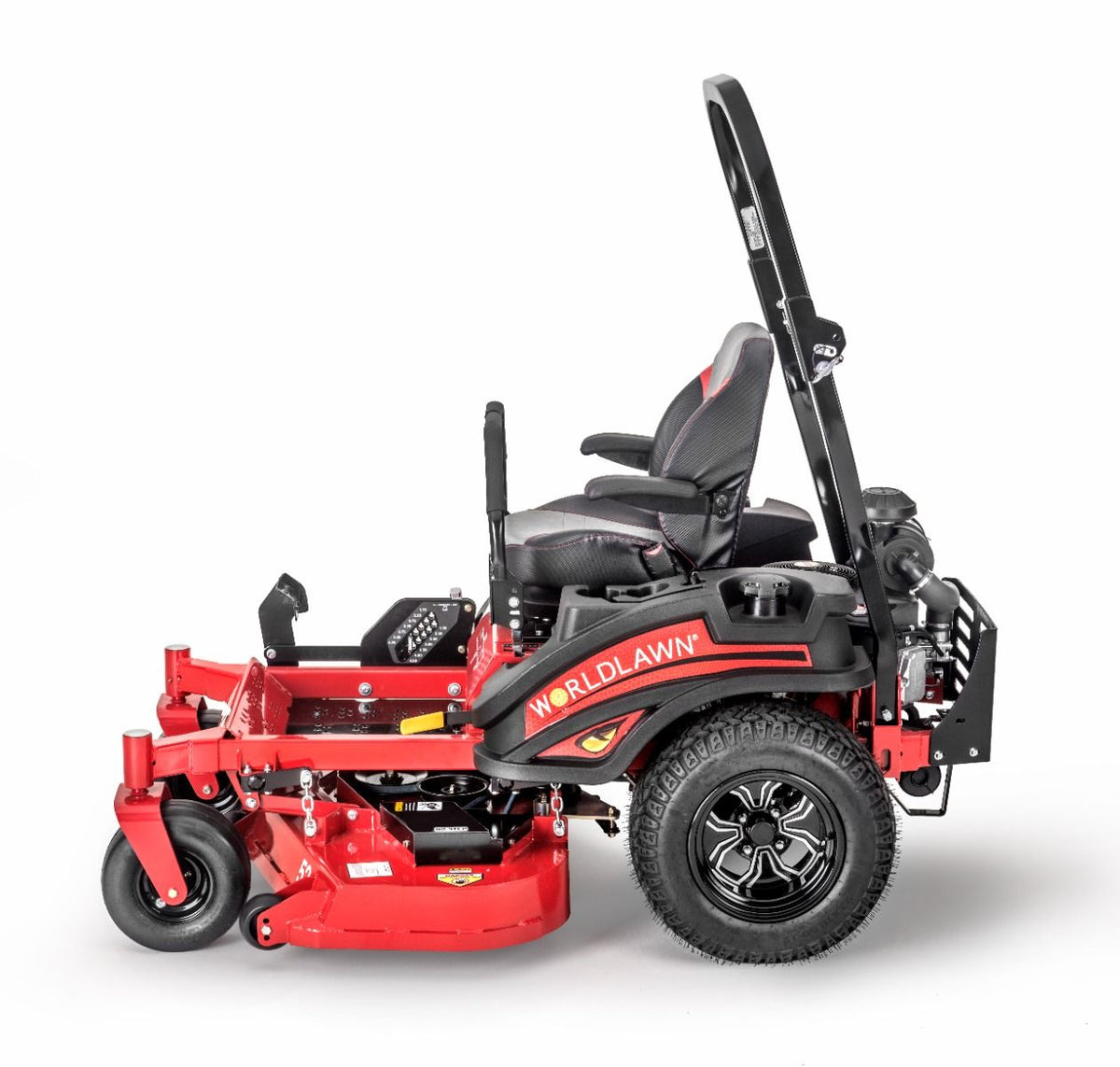

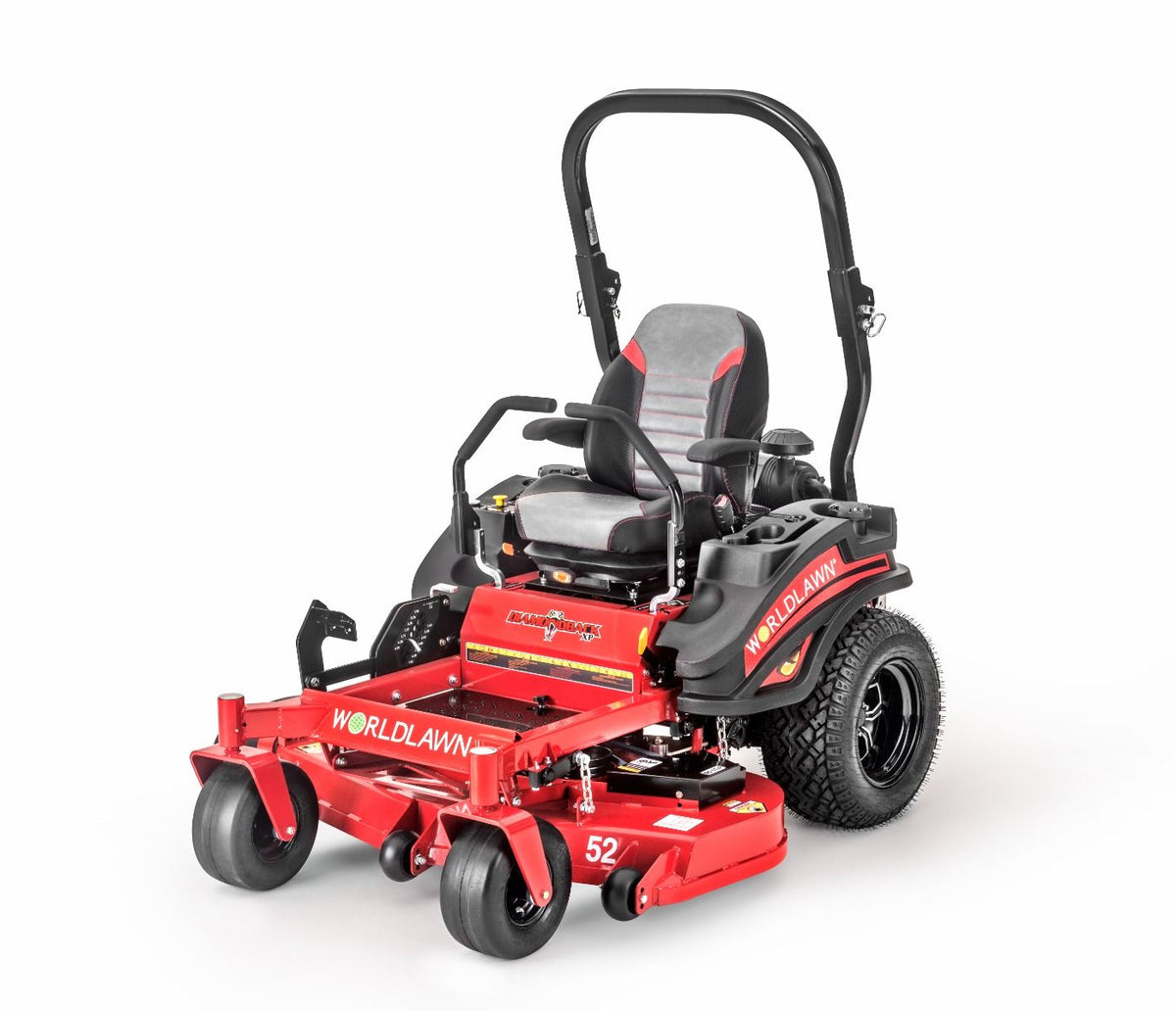

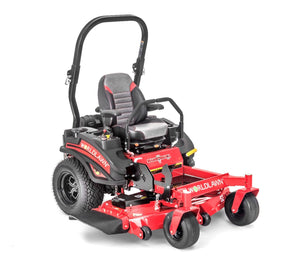

Why the Diamondback XP 52" Is the Commercial Workhorse Built for All‑Day Mowing

Kawasaki FX691V Commercial Engine — 23 HP The Diamondback XP 52 is powered by the Kawasaki FX691V, a 23 HP commercial‑grade V‑Twin designed for heavy‑duty mowing. The FX series features upgraded air filtration, stronger internal components, and higher torque output compared to FR residential engines — making it ideal for daily commercial use.

Hydro‑Gear ZT‑3400 Commercial Transmissions Dual Hydro‑Gear ZT‑3400 transaxles deliver maximum torque, smoother control, and longer service life. This is a major upgrade over ZT‑3200 units and is commonly found in upper‑tier commercial zero turns.

Heavy‑Duty 8‑Gauge Fabricated Deck — 52" The XP deck is built from 8‑gauge welded steel, reinforced for strength and designed for high‑volume airflow. This deck produces a clean, professional cut and withstands commercial abuse.

Triple‑Blade Cutting System Three blades deliver a clean, even cut across the full 52" width, improving cut quality and reducing scalping.

Electric PTO Clutch Instant blade engagement with a commercial‑grade electric PTO system.

Wide Cutting Height Range Cutting heights from 1.5" to 4.75", adjustable for residential or commercial turf.

Large Fuel Capacity — 9.5 Gallons A massive 9.5‑gallon fuel tank keeps you mowing longer without refueling, ideal for commercial routes.

Commercial Tires for Traction & Stability

• Front Tires: 13 × 5.00‑6 smooth

• Rear Tires: 23 × 9.50‑12 turf These provide excellent traction, hillside stability, and smooth operation.

Full Commercial Frame & Spindle Support Triple‑layer spindle support and reinforced frame components ensure long‑term durability.

ROPS Included Foldable ROPS bar for operator safety.

Fast Ground Speed Up to 9 mph forward speed for high productivity.

Dimensions & Weight

• Length: 77.4"

• Width (Deflector Down): 64"

• Width (Deflector Up): 54"

• Wheelbase: 50.5"

• Track Width: 47"

• Weight: 940 lbs

Warranty Coverage Backed by Worldlawn’s 3‑Year Limited Warranty, providing reliable support and long‑term protection.
