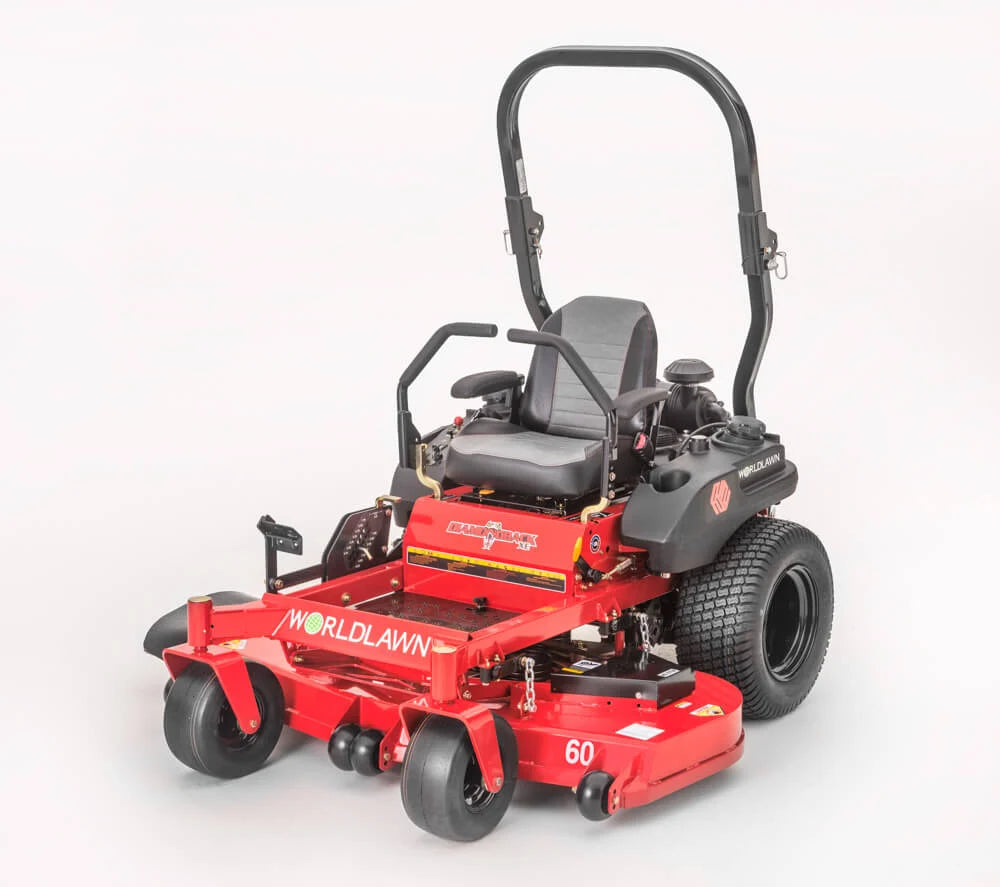

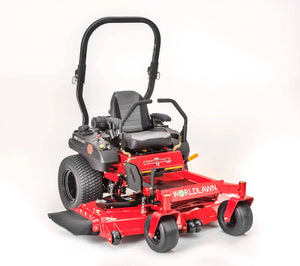

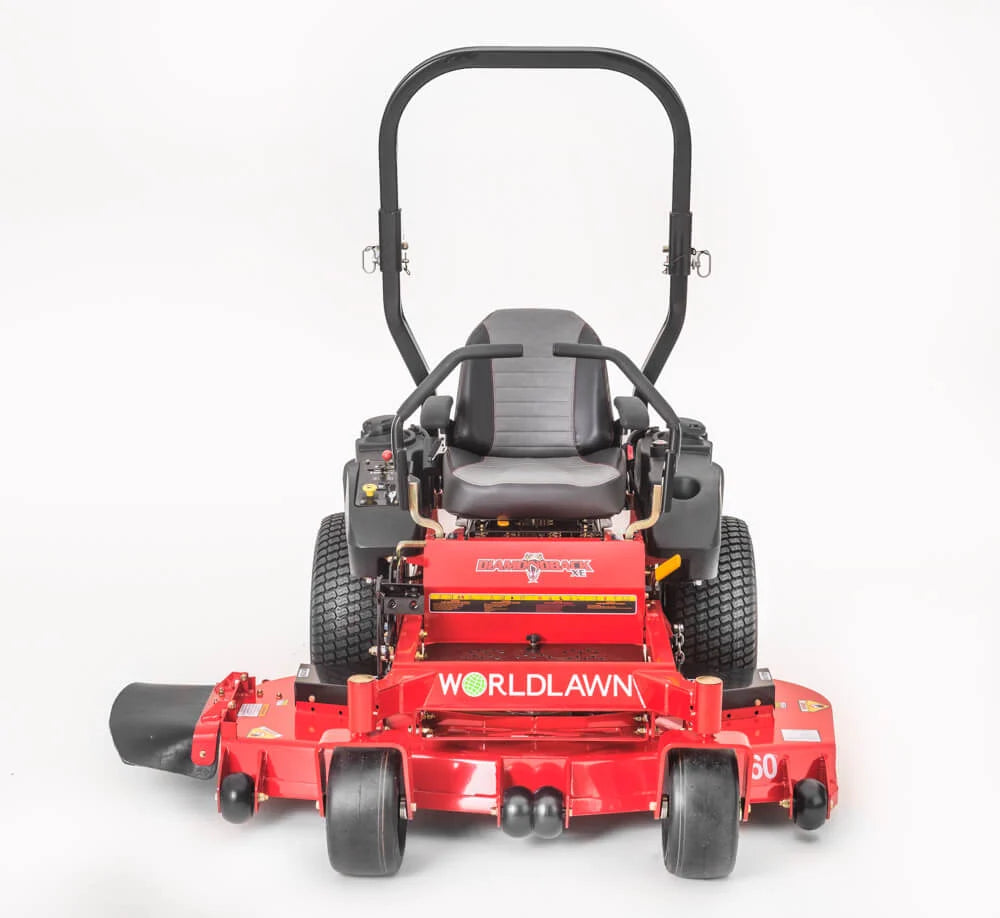

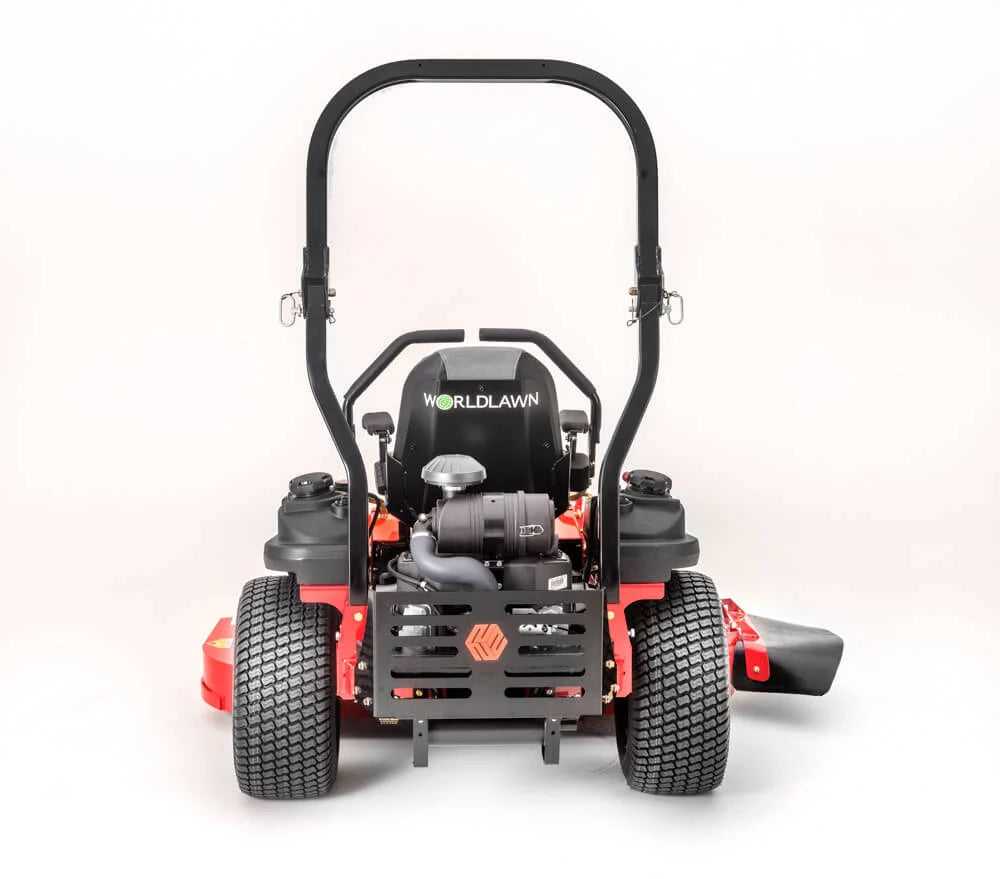

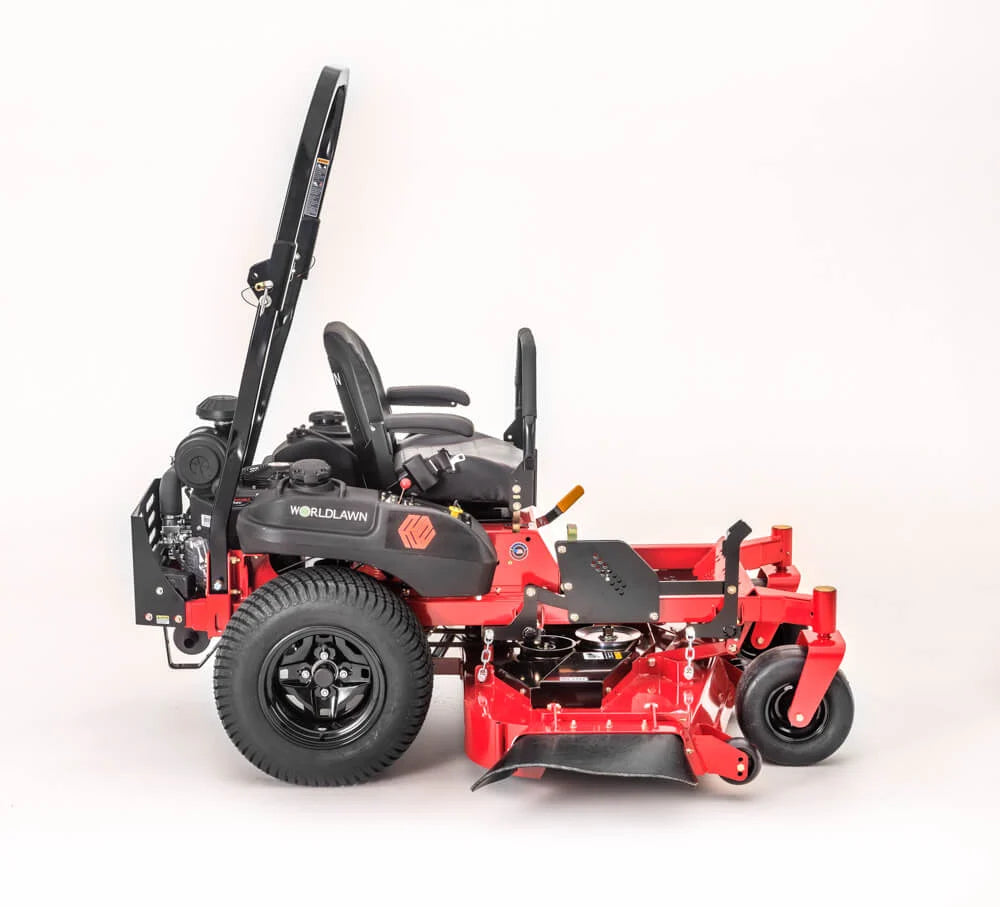

Why the Diamondback 60" Delivers Maximum Productivity With Commercial‑Grade Strength

Worldlawn V‑Twin 24 HP Commercial Engine The Diamondback 60 is powered by the Worldlawn 24 HP V‑Twin, delivering strong torque, smooth operation, and reliable performance for large‑acreage mowing. This engine is designed for durability and consistent output under heavy load.

Hydro‑Gear ZT‑3200 Commercial Transmissions Dual Hydro‑Gear ZT‑3200 transaxles provide high torque, smooth control, and long‑life durability. This transmission is a major upgrade over residential ZT‑2200/2800 units and is built for daily commercial use.

Heavy‑Duty 8‑Gauge Fabricated Deck — 60" The 60" deck is constructed from 8‑gauge welded steel, reinforced for strength and designed for high‑volume airflow. This deck produces a clean, professional cut and withstands commercial abuse.

Triple‑Blade Cutting System Three 20" blades deliver a clean, even cut across the full 60" width, improving cut quality and reducing scalping.

Electric PTO Clutch Instant blade engagement with a commercial‑grade electric PTO system.

Wide Cutting Height Range Cutting heights from 1.5" to 4.75", adjustable for residential or commercial turf.

Large Fuel Capacity — 9.5 Gallons A massive 9.5‑gallon fuel tank keeps you mowing longer without refueling, ideal for commercial routes.

Commercial Tires for Traction & Stability

• Front Tires: 13 × 6.50‑6 smooth

• Rear Tires: 23 × 10.50‑12 turf These provide excellent traction, hillside stability, and smooth operation.

Full Commercial Frame & Spindle Support Triple‑layer spindle support and reinforced frame components ensure long‑term durability.

ROPS Included Foldable ROPS bar for operator safety.

Fast Ground Speed Up to 9 mph forward speed for high productivity.

Dimensions & Weight

• Length: 77.4"

• Width (Deflector Down): 73"

• Width (Deflector Up): 61"

• Wheelbase: 50.5"

• Track Width: 49.5"

• Weight: 1020 lbs

Warranty Coverage Backed by Worldlawn’s 3‑Year Residential & Commercial Warranty, plus a 10‑Year Deck Shell Warranty.
