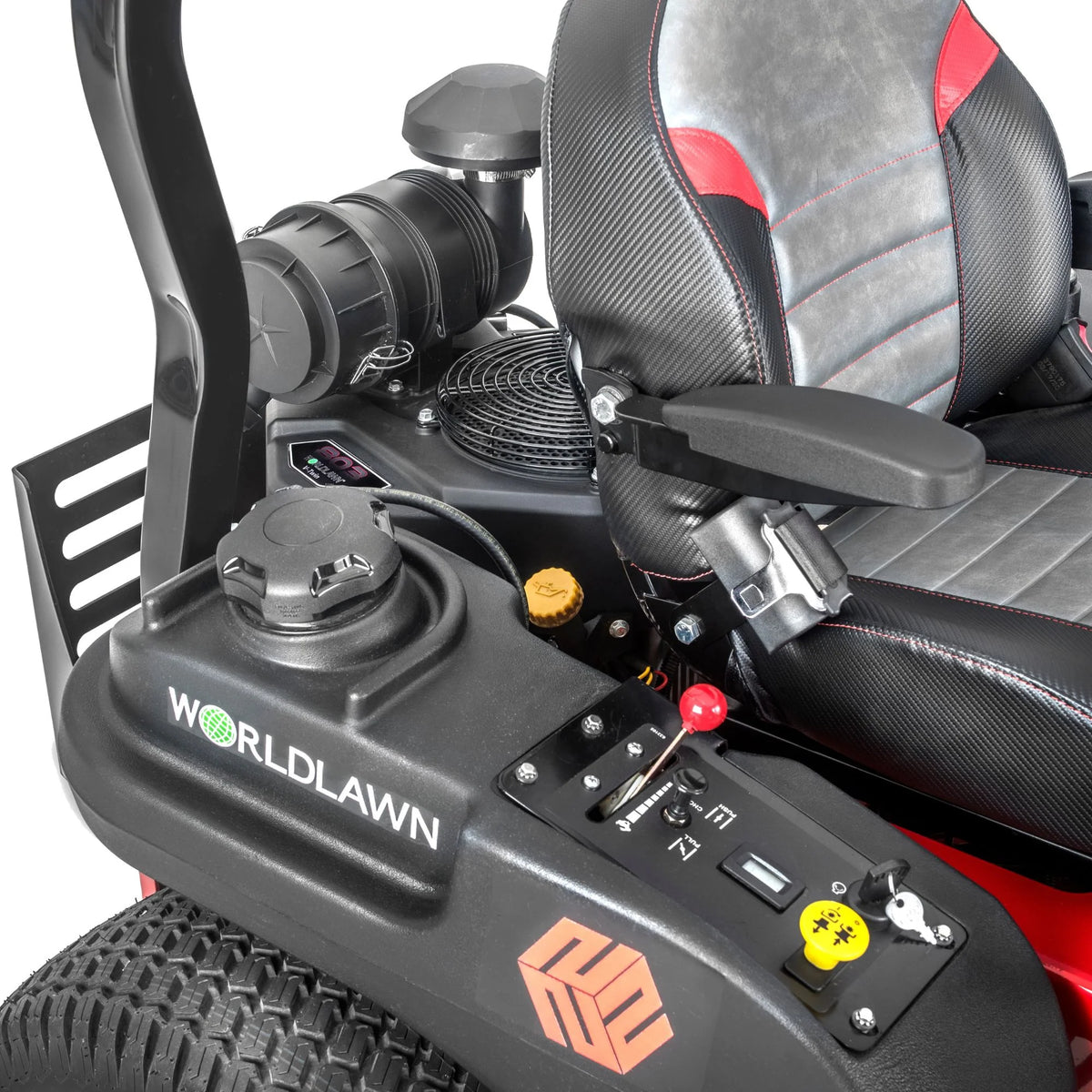

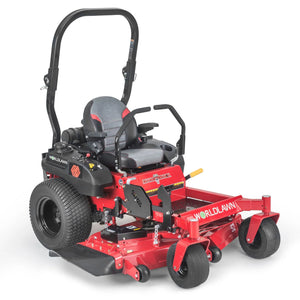

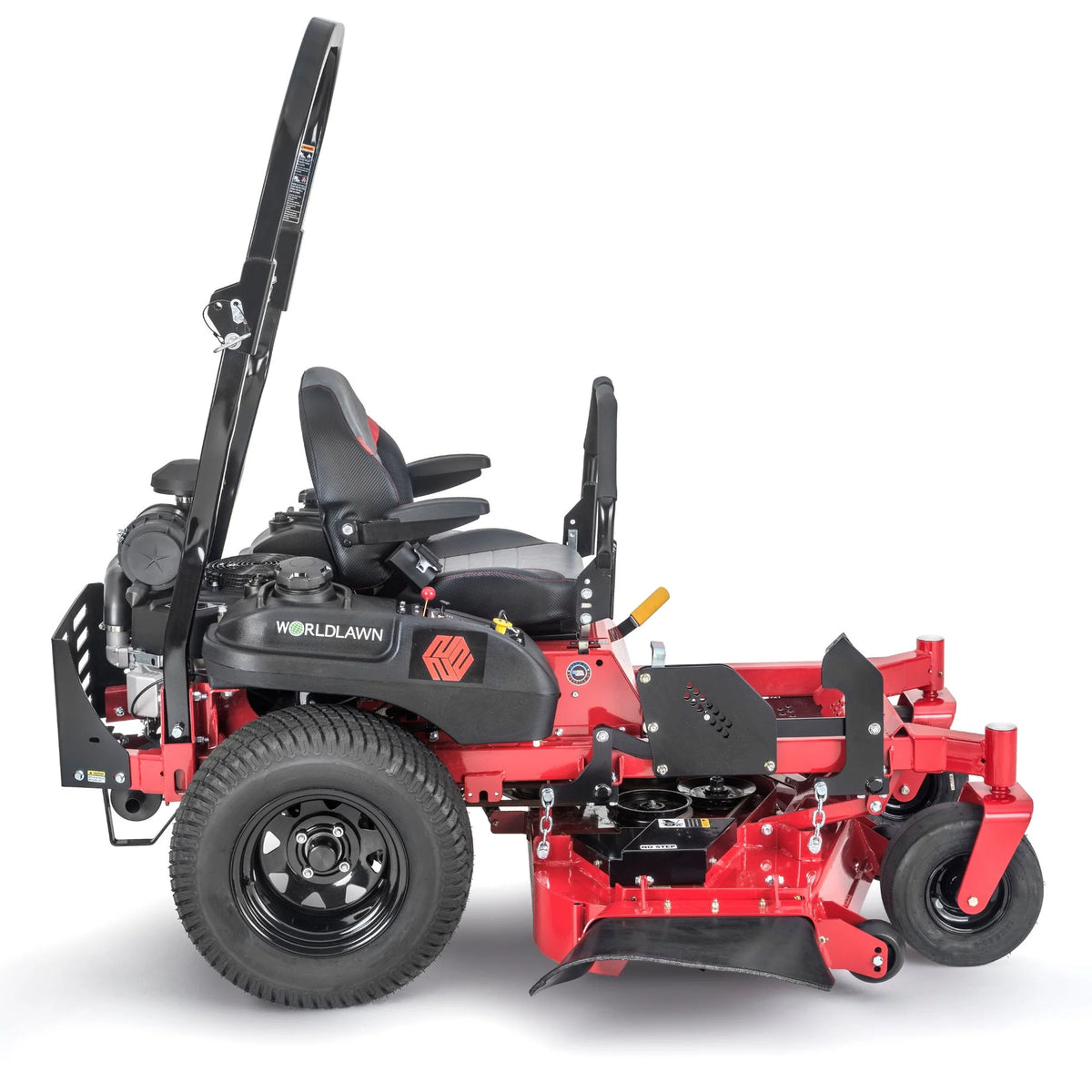

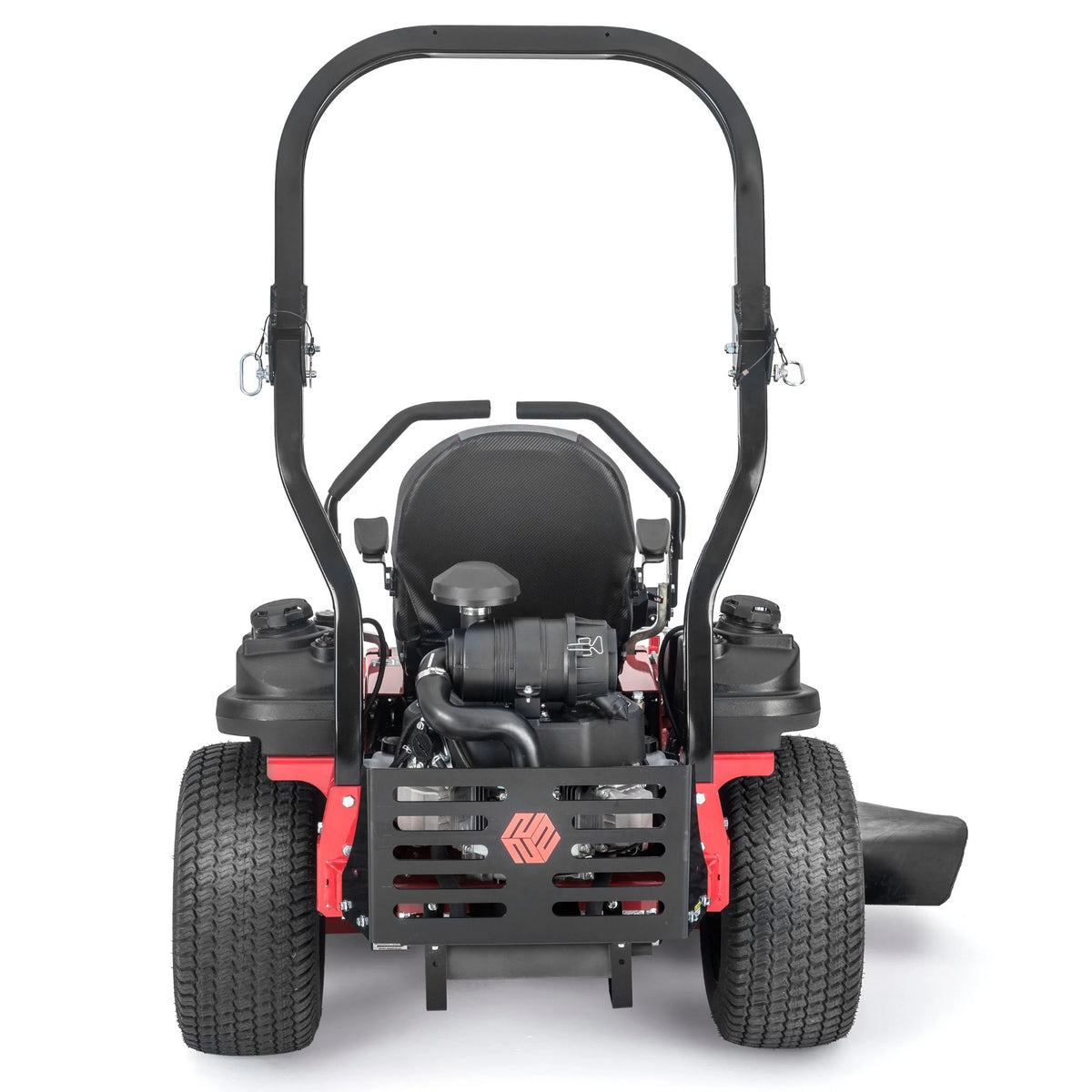

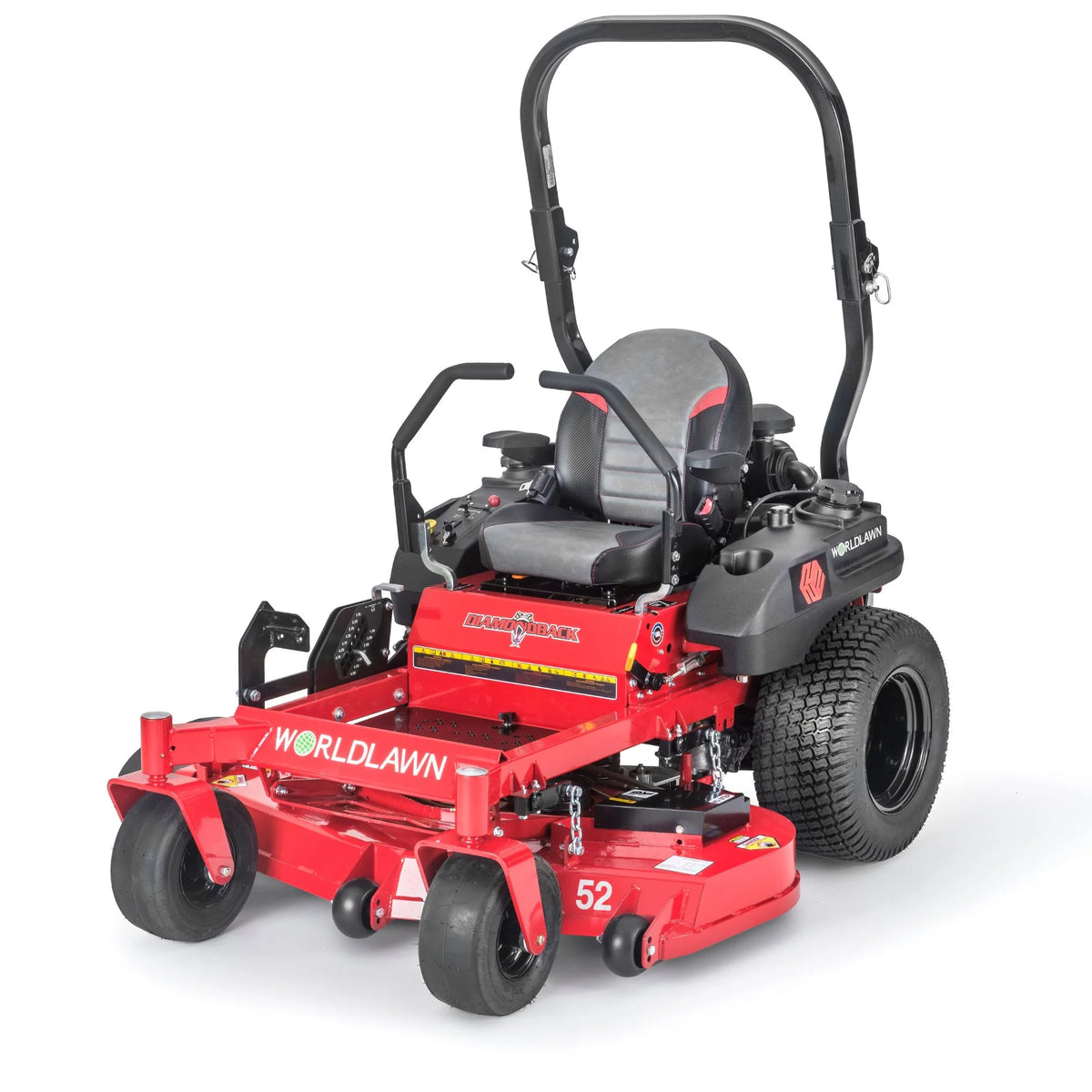

Why the Diamondback 52" Delivers Commercial Strength With Maximum Productivity

Commercial‑Grade Power — Worldlawn V‑Twin 24 HP The Diamondback 52 is powered by the Worldlawn 24 HP V‑Twin, delivering strong torque, smooth operation, and reliable performance for demanding mowing conditions. This engine is designed for long‑term durability and consistent output.

Hydro‑Gear ZT‑3200 Commercial Transmissions Dual Hydro‑Gear ZT‑3200 transaxles provide high torque, smooth control, and long‑life durability. This is the same transmission used in many commercial zero turns and is a major upgrade over residential ZT‑2200/2800 units.

Heavy‑Duty 8‑Gauge Fabricated Deck — 52" The 52" deck is built from 8‑gauge welded steel, reinforced for strength and designed for high‑volume airflow. This deck produces a clean, professional cut and withstands commercial abuse.

Triple‑Blade Cutting System Three blades deliver a clean, even cut across the full 52" width, improving cut quality and reducing scalping.

Electric PTO Clutch Instant blade engagement with a commercial‑grade electric PTO system.

Wide Cutting Height Range Cutting heights from 1.5" to 4.75", adjustable for residential or commercial turf.

Large Fuel Capacity — 9.5 Gallons A massive 9.5‑gallon fuel tank keeps you mowing longer without refueling, ideal for commercial routes.

Commercial Tires for Traction & Stability

• Front Tires: 13 × 5.00‑6 smooth

• Rear Tires: 23 × 9.50‑12 turf These provide excellent traction, hillside stability, and smooth operation.

Full Commercial Frame & Spindle Support Triple‑layer spindle support and reinforced frame components ensure long‑term durability.

ROPS Included Foldable ROPS bar for operator safety.

Fast Ground Speed Up to 9 mph forward speed for high productivity.

Dimensions & Weight

• Length: 77.4"

• Width (Deflector Down): 64"

• Width (Deflector Up): 54"

• Wheelbase: 50.5"

• Track Width: 47"

• Weight: 940 lbs

Warranty Coverage Backed by Worldlawn’s 3‑Year Limited Warranty, providing reliable support and long‑term protection.
