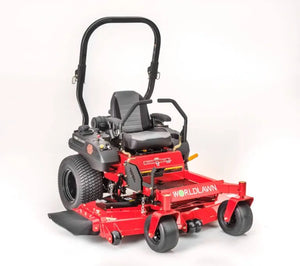

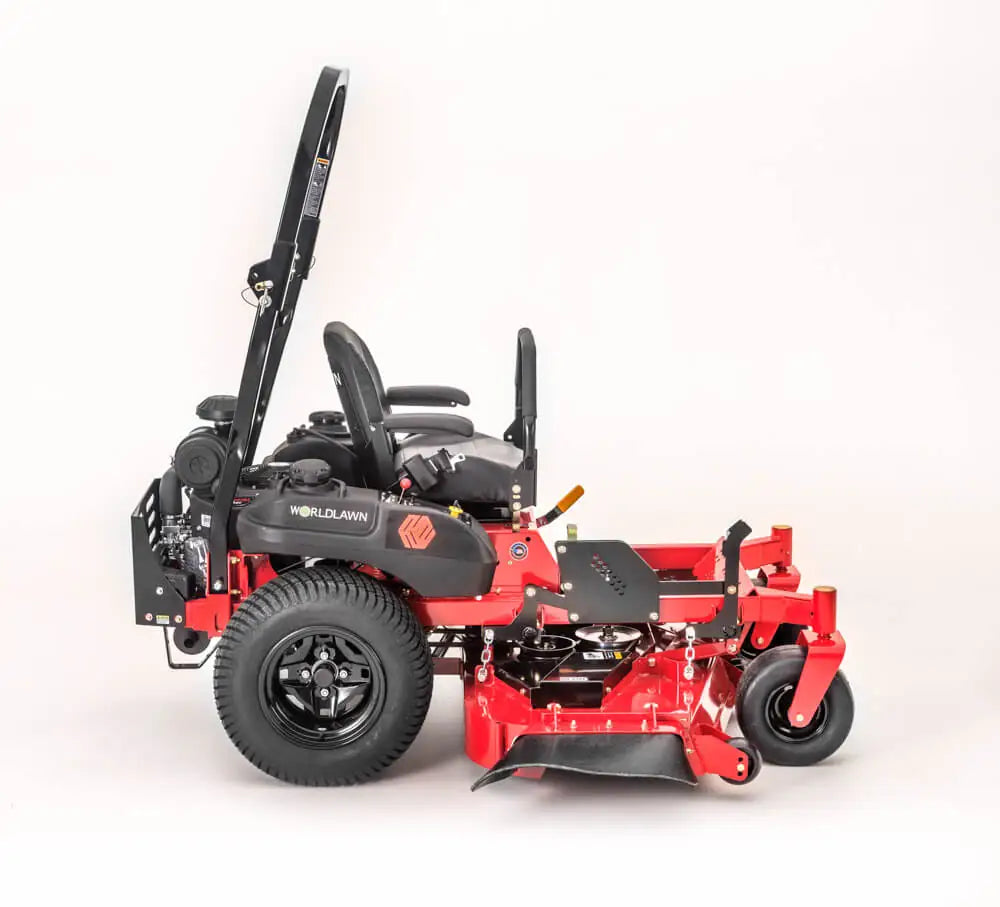

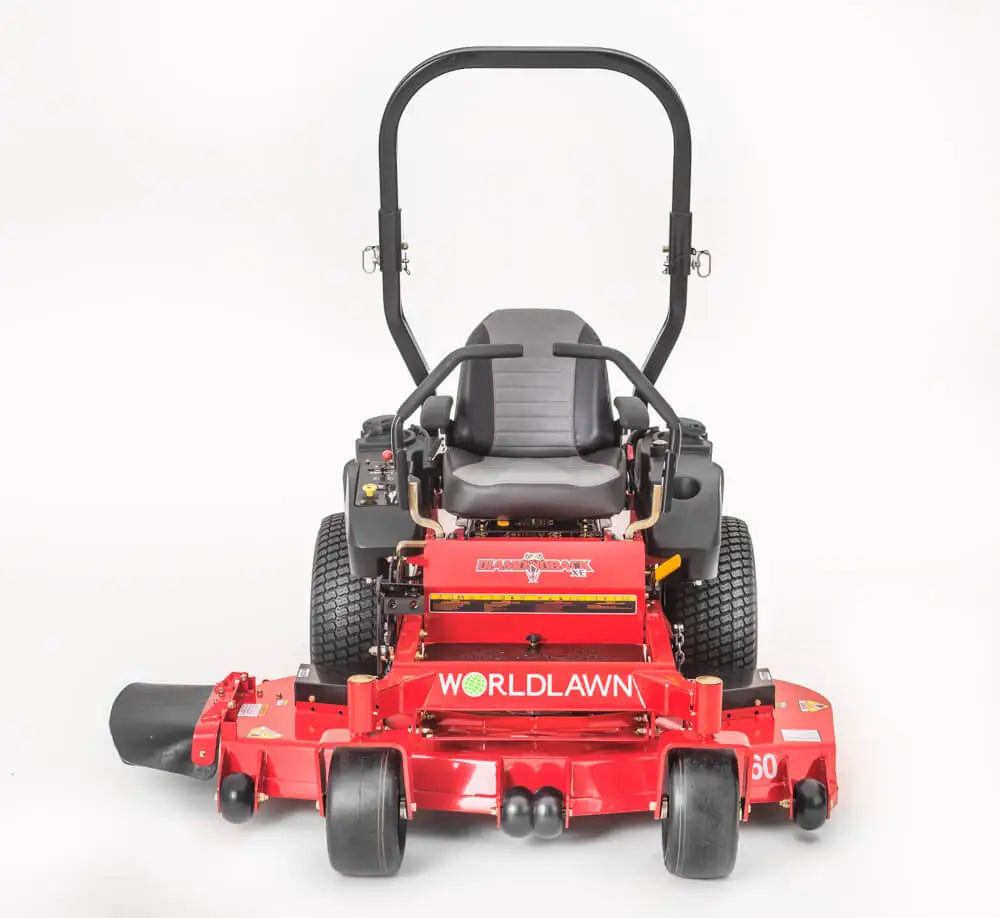

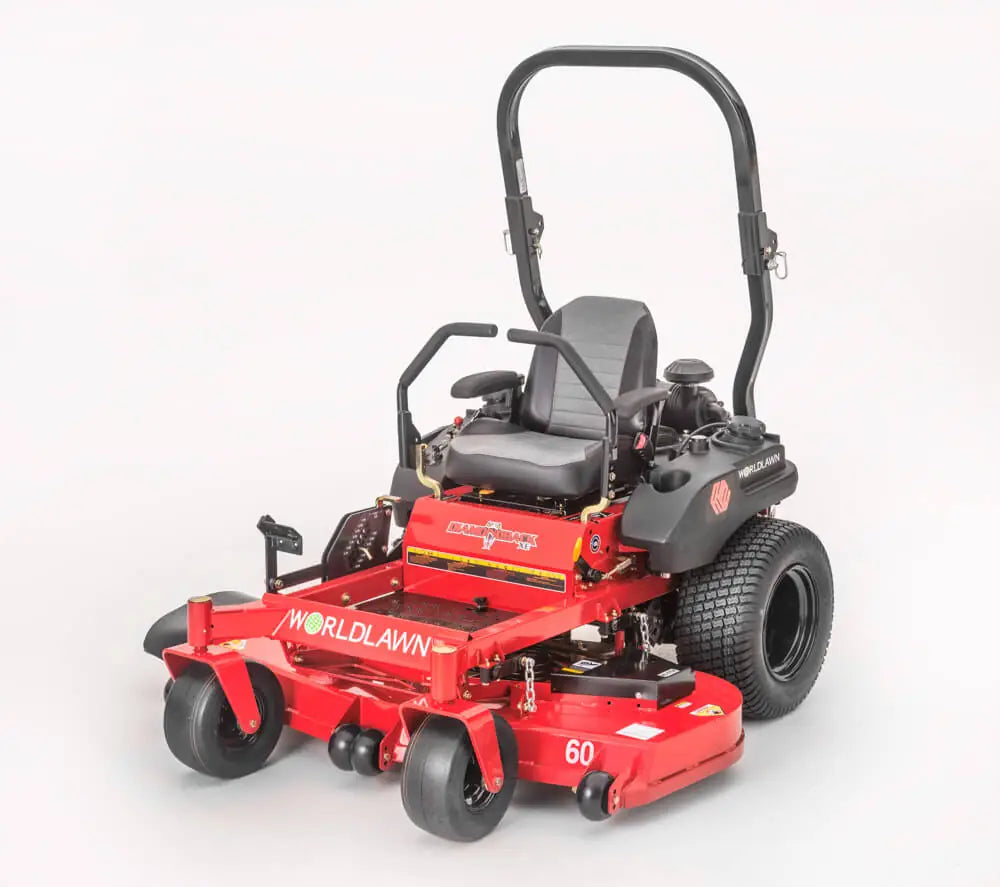

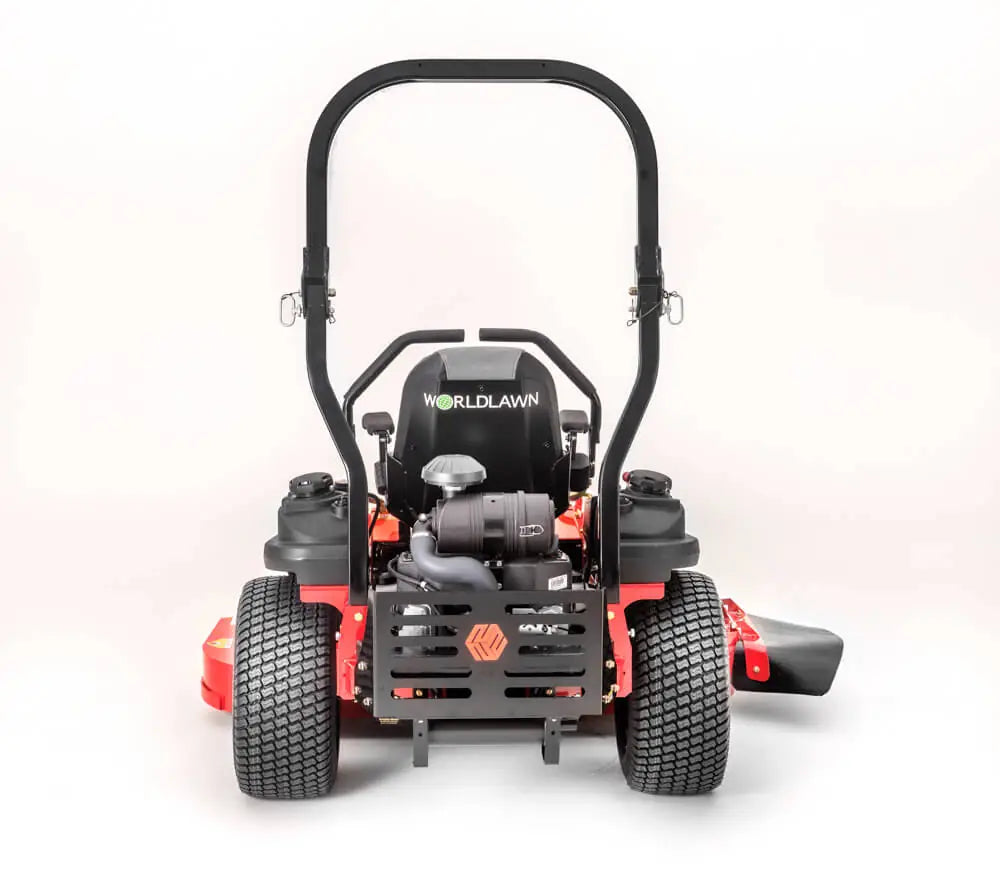

Why the Diamondback 48" Delivers Commercial Strength With Kawasaki Reliability

Kawasaki FR691V Commercial Engine — 23 HP The Diamondback 48 is powered by the Kawasaki FR691V, a 23 HP commercial‑grade V‑Twin known for durability, smooth operation, and high torque under load. This engine is widely used across premium commercial zero turns.

Hydro‑Gear ZT‑3200 Commercial Transmissions Dual Hydro‑Gear ZT‑3200 transaxles deliver high torque, smooth control, and long‑life durability. This transmission is a major upgrade over residential ZT‑2200/2800 units and is built for daily commercial use.

Heavy‑Duty 8‑Gauge Fabricated Deck The 48" deck is constructed from 8‑gauge welded steel, reinforced for strength and designed for high‑volume airflow. This deck produces a clean, professional cut and withstands commercial abuse.

Triple‑Blade Cutting System Three blades deliver a clean, even cut across the full 48" width, improving cut quality and reducing scalping.

Electric PTO Clutch Instant blade engagement with a commercial‑grade electric PTO system.

Wide Cutting Height Range Cutting heights from 1.5" to 4.75", adjustable for residential or commercial turf.

Large Fuel Capacity — 9.5 Gallons A massive 9.5‑gallon fuel tank keeps you mowing longer without refueling, ideal for commercial routes.

Commercial Tires for Traction & Stability

• Front Tires: 13 × 5.00‑6 smooth

• Rear Tires: 23 × 9.50‑12 turf These provide excellent traction, hillside stability, and smooth operation.

Full Commercial Frame & Spindle Support Triple‑layer spindle support and reinforced frame components ensure long‑term durability.

ROPS Included Foldable ROPS bar for operator safety.

Fast Ground Speed Up to 9 mph forward speed for high productivity.

Dimensions & Weight

• Length: 77.4"

• Width (Deflector Down): 60"

• Width (Deflector Up): 49"

• Wheelbase: 50.5"

• Track Width: 47"

• Weight: 920 lbs

Warranty Coverage Backed by Worldlawn’s 3‑Year Limited Warranty, providing reliable support and long‑term protection.
