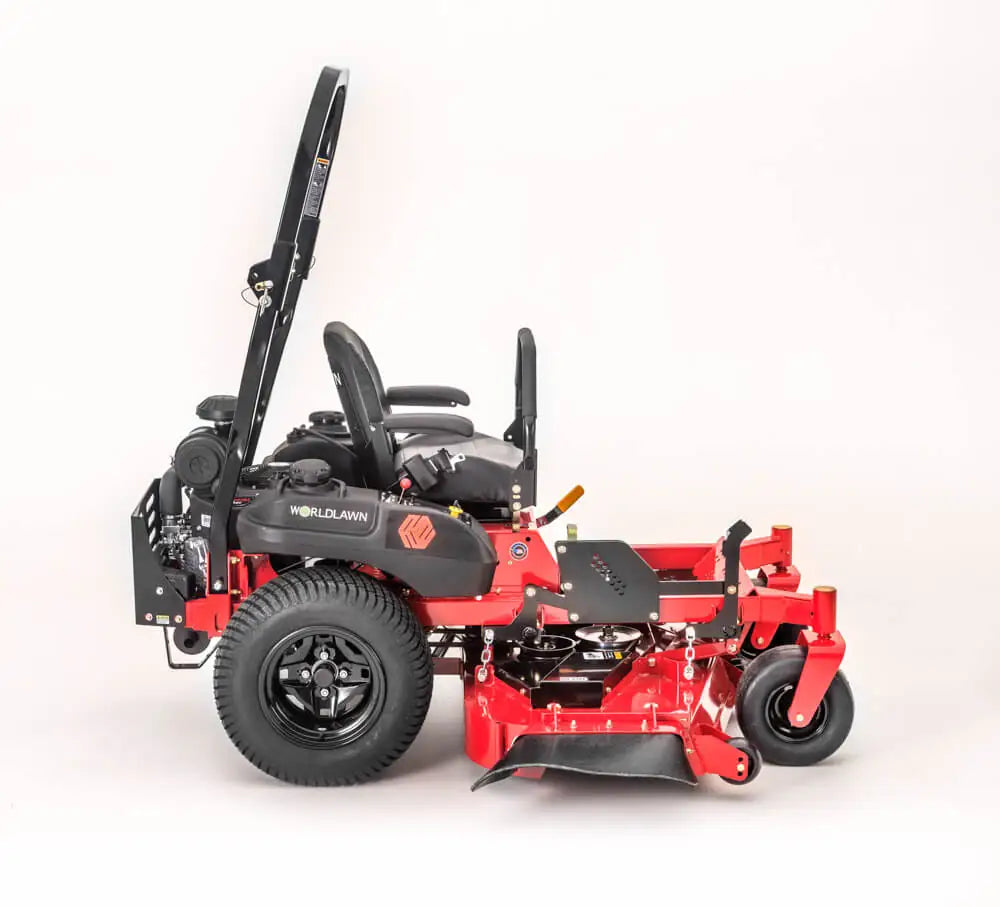

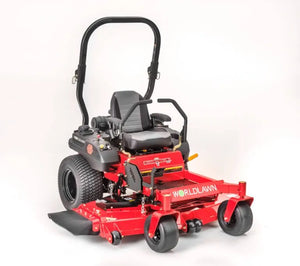

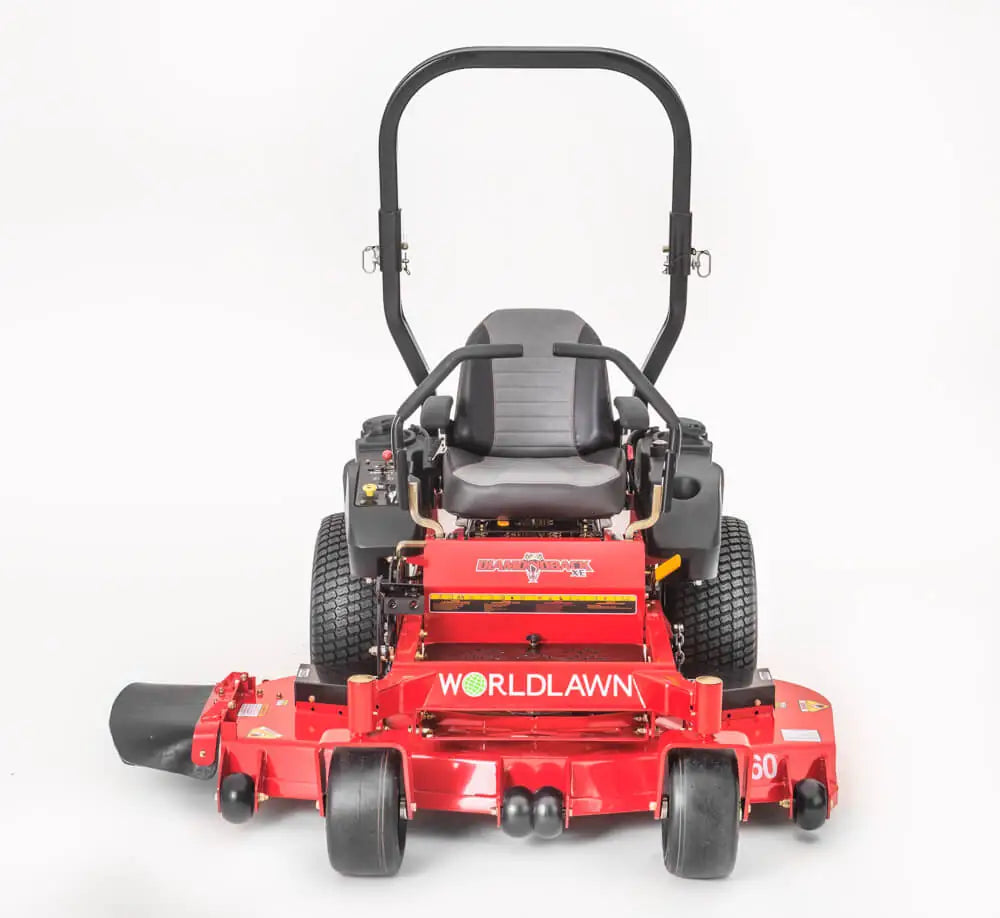

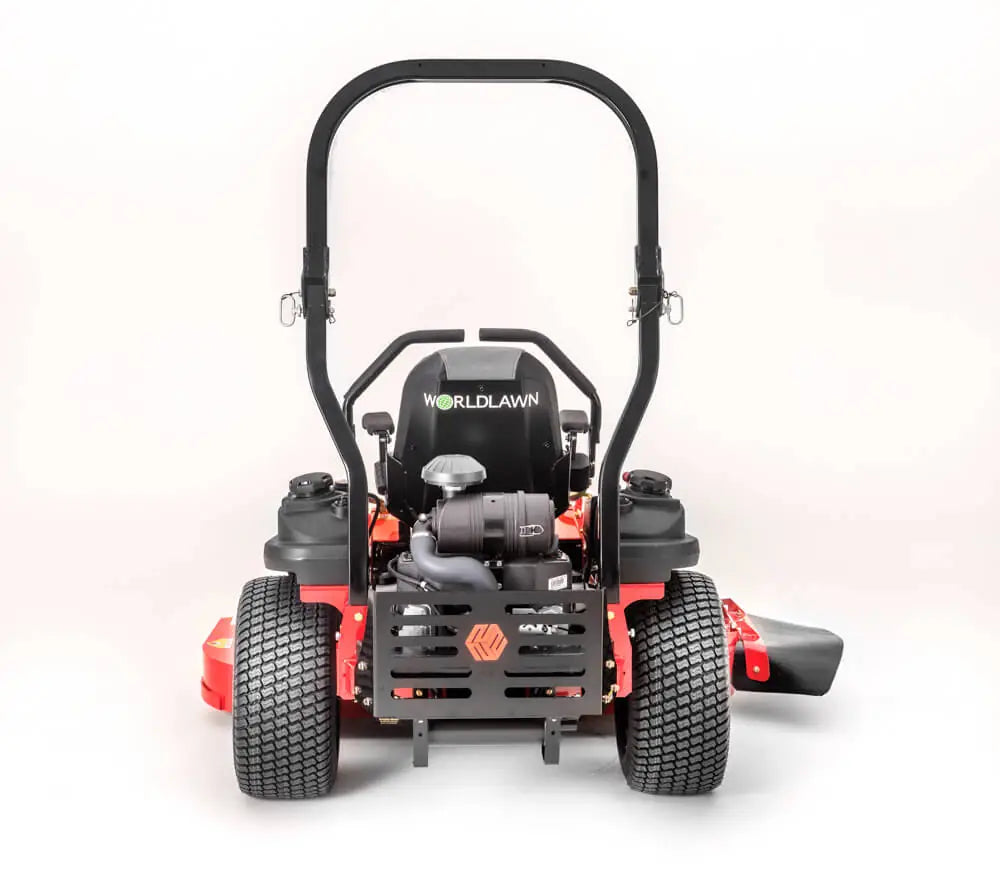

Why the Diamondback 48" Delivers Commercial Strength at a Consumer Price

Commercial‑Grade Power — Worldlawn V‑Twin 24 HP The Diamondback 48 is equipped with a 24 HP Worldlawn V‑Twin engine, delivering strong torque, smooth operation, and reliable performance for demanding mowing conditions.

Hydro‑Gear ZT‑3200 Commercial Transmissions Dual Hydro‑Gear ZT‑3200 transaxles provide high torque, smooth control, and long‑life durability. This is the same transmission used in many commercial zero turns.

Heavy‑Duty 8‑Gauge Fabricated Deck The 48" deck is built from 8‑gauge welded steel, reinforced for durability and designed for high‑volume airflow and superior cut quality.

Triple‑Blade Cutting System Three 16.25" blades deliver a clean, even cut across the full 48" width.

Electric PTO Clutch Instant blade engagement with a commercial‑grade electric PTO system.

Wide Cutting Height Range Cutting heights from 1.5" to 4.75", adjustable for residential or commercial turf.

Large Fuel Capacity — 9.5 Gallons A massive 9.5‑gallon fuel tank keeps you mowing longer without refueling.

Commercial Tires for Traction & Stability

• Front Tires: 13 × 5.00‑6 smooth

• Rear Tires: 23 × 9.50‑12 turf These provide excellent traction, hillside stability, and smooth operation.

Full Commercial Frame & Spindle Support Triple‑layer spindle support and reinforced frame components ensure long‑term durability.

ROPS Included Foldable ROPS bar for operator safety.

Fast Ground Speed Up to 9 mph forward speed for high productivity.

Dimensions & Weight

• Length: 77.4"

• Width (Deflector Down): 60"

• Width (Deflector Up): 49"

• Wheelbase: 50.5"

• Track Width: 47"

• Weight: 920 lbs

Warranty Coverage Backed by Worldlawn’s 3‑Year Limited Warranty, providing reliable support and long‑term protection.
